SMAK
SMAK

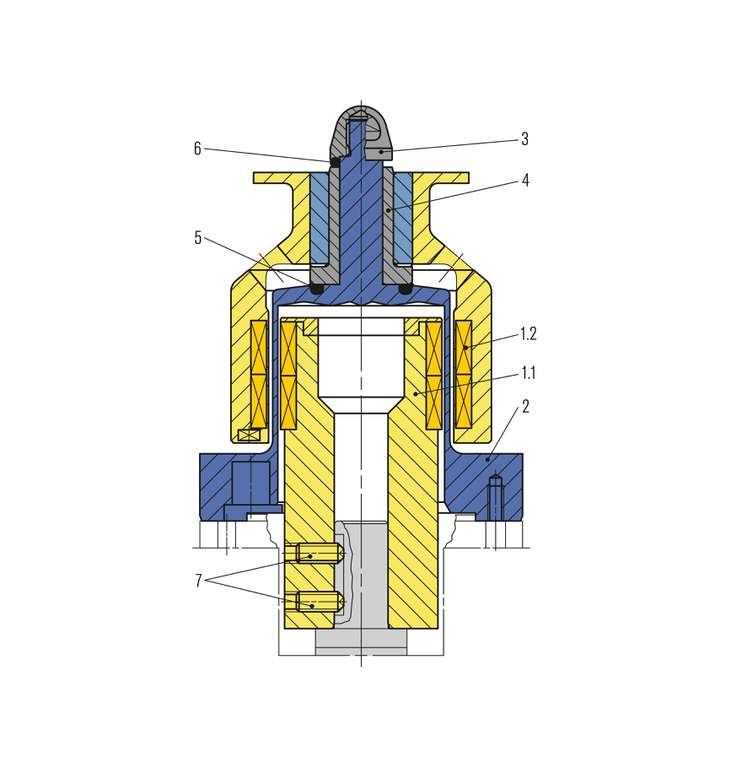

SMAK for bottom drives
| Item | Description |
| 1.1 | Inner rotor |
| 1.2 | Outer rotor |
| 2 | Can |
| 3 | Nut |
| 4 | Bearing bushing |
| 5, 6 | O-Ring |
| 7 | Set screw |
SMAK
Features
Magnetic couplings of the SMAK series are used to transfer torque into mixers and agitators. Top drive, bottom drive or lateral drive. Dangerous or precious media remain isolated in the closed vessel.
Advantages
- Magnetic coupling for mixers and agitators
- Hermetically sealed
- Sterile design
- Parts in contact with the medium are electro-polished
- No contamination by buffer media
- No contact of torque transmitting elements
- No maintenance necessary
- Sliding bearing for bottom drives included
- Speed monitoring optional
- Weld-in or screw-in flanges available
Materials
Sliding bearings: Silicon carbide or zirconia, FDA-compliant
Bearings: Silicon nitride
Magnets: Samarium cobalt
Secondary seals and metal parts according to application and customer's specifications.
Bearings: Silicon nitride
Magnets: Samarium cobalt
Secondary seals and metal parts according to application and customer's specifications.
Standards and approvals
- QHD
- GMP
- FDA
Recommended applications
- Chemical industry
- Pharmaceutical industry
- Food processing industry
- Agitators
- Mixers
Functional description
The power transmission occurs contact-free through magnets from the drive shaft to the product wetted output shaft. Between the two rotating parts is the can wich is bolted to the container.
Notes
Top drive coupling with dry running roller bearings available.
Product variants

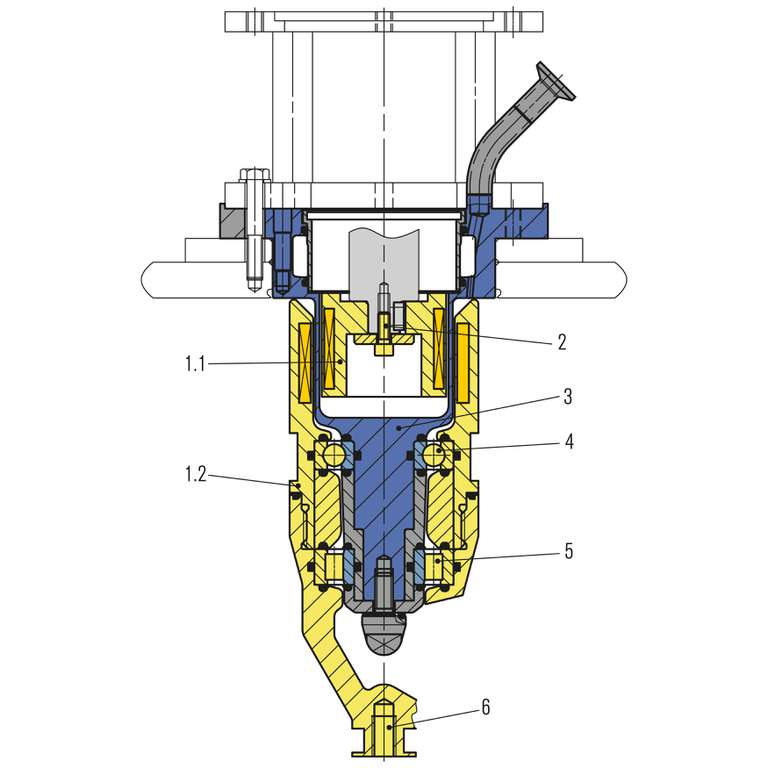

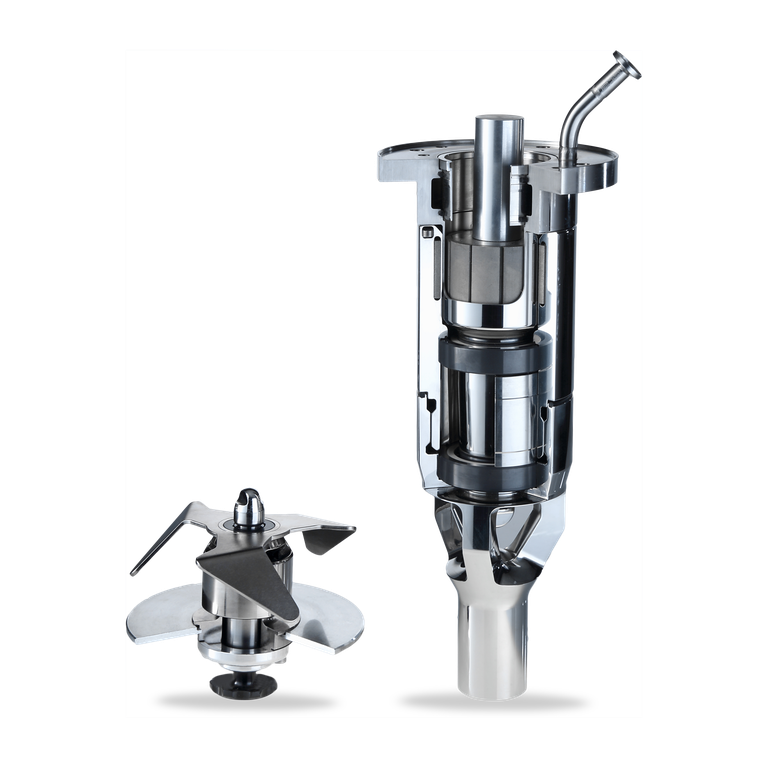

SMAK for top drives
| Item | Description |
| 1.1 | Inner rotor |
| 1.2 | Outer rotor |
| 2 | Motor connection |
| 3 | Can |
| 4, 5 | Bearing |
| 6 | Agitator blade connection |
SMAK4-75-4/40
for top drives
Max. torque: 16 Nm
Rotational speed: 0 … 400 min-1
Temperature: (max.) 130 °C (266 °F)
Pressure: 25 bar (363 PSI)
Overall height (agitator element connection to top edge of flange): 340 mm
Diameter (outer magnetic rotor): 110 mm
Materials:
1.4435, EPDM (FDA), Si3N4, PEEK
Surface finish: Ra <0.5
for top drives
Max. torque: 16 Nm
Rotational speed: 0 … 400 min-1
Temperature: (max.) 130 °C (266 °F)
Pressure: 25 bar (363 PSI)
Overall height (agitator element connection to top edge of flange): 340 mm
Diameter (outer magnetic rotor): 110 mm
Materials:
1.4435, EPDM (FDA), Si3N4, PEEK
Surface finish: Ra <0.5
SMAK4-75-6/-40
for top drives
Max. torque: 24 Nm
Rotational speed: 0 … 400 min-1
Temperature (max.) 130 °C (266 °F)
Pressure 25 bar: (363 PSI)
Overall height (agitator element connection to top edge of flange): 360 mm
Diameter (outer magnetic rotor): 110 mm
Materials:
1.4435, EPDM (FDA), Si3N4, PEEK
Surface finish: Ra <0.5
for top drives
Max. torque: 24 Nm
Rotational speed: 0 … 400 min-1
Temperature (max.) 130 °C (266 °F)
Pressure 25 bar: (363 PSI)
Overall height (agitator element connection to top edge of flange): 360 mm
Diameter (outer magnetic rotor): 110 mm
Materials:
1.4435, EPDM (FDA), Si3N4, PEEK
Surface finish: Ra <0.5
SMAK4-135-6/75
for top drives
Max. torque: 100 Nm
Rotational speed: 0 … 400 min-1
Temperature (max.): 130 °C (266 °F)
Pressure. 25 bar (363 PSI)
Overall height (agitator element connection to top edge of flange): 515 mm
Diameter (outer magnetic rotor): 110 mm
Materials:
1.4435, EPDM (FDA), Si3N4, PEEK
Surface finish: Ra <0.5
for top drives
Max. torque: 100 Nm
Rotational speed: 0 … 400 min-1
Temperature (max.): 130 °C (266 °F)
Pressure. 25 bar (363 PSI)
Overall height (agitator element connection to top edge of flange): 515 mm
Diameter (outer magnetic rotor): 110 mm
Materials:
1.4435, EPDM (FDA), Si3N4, PEEK
Surface finish: Ra <0.5
