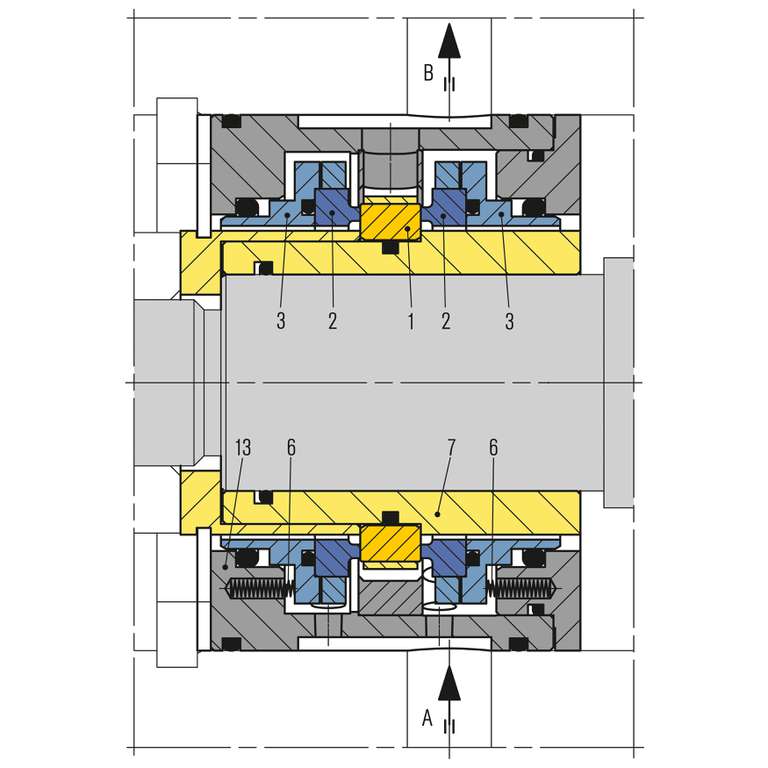

Drawing shows WRS dual seal
| Item | Description |
| 1 | Seat, rotating |
| 2 | Seal face, stationary |
| 3 | Face housing |
| 6 | Spring |
| 7 | Shaft sleeve |
| 13 | Housing |
| A | Oil IN |
| B | Oil OUT |

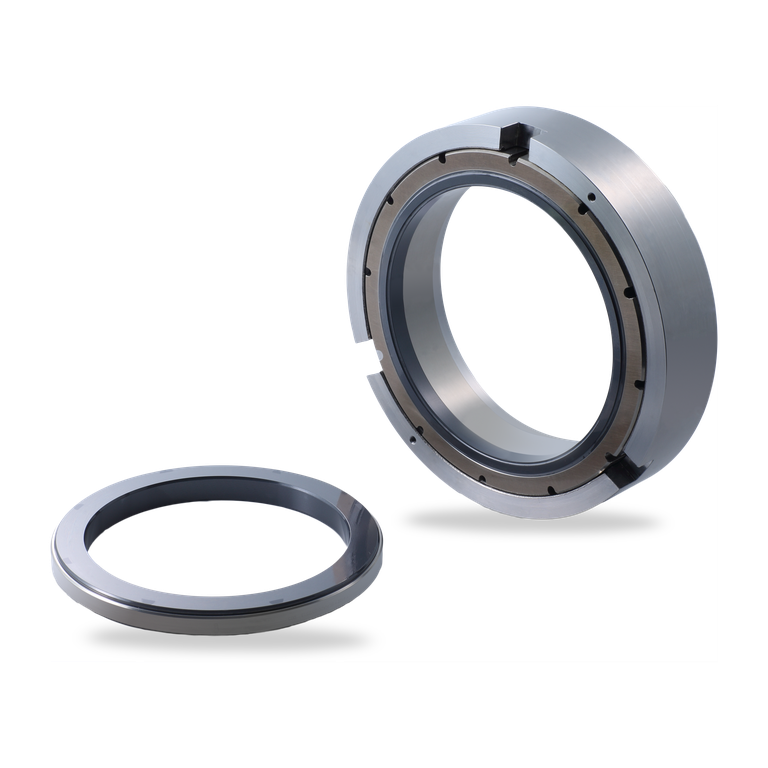

WRS
Features
- Oil-lubricated
- Bi-directional
- Externally pressurized
- Ready-to-fit cartridge unit
- Single, face bushing and double seal available
- Suitable for high speed
- Hydrodynamic grooves for increased operating capabilities and stabilized low leakage
Advantages
- Low oil consumption
- Rugged seat with bandage ensures reliable operation
- Wear-free operation by use of lift-off-design
- Does not open if oil pressure drops
Operating range
Shaft diameter:
25 … 195 mm (1" … 7.7")
Process gas pressure: up to 40 bar (580 PSI)
Required oil pressure: Pproduct + Δp (1-3 bar, depending on sliding velocity)
Gas temperature:
t = -20 °C … +200 °C (-4 °F … +392 °F)
Oil temperature:
t = 30 °C … 60 °C (86 °F … 140 °F)
Sliding velocity: vg = 5 ... 100 m/s (16 ... 328 ft/s)
Oil viscosity: ISO VG32 + 46
25 … 195 mm (1" … 7.7")
Process gas pressure: up to 40 bar (580 PSI)
Required oil pressure: Pproduct + Δp (1-3 bar, depending on sliding velocity)
Gas temperature:
t = -20 °C … +200 °C (-4 °F … +392 °F)
Oil temperature:
t = 30 °C … 60 °C (86 °F … 140 °F)
Sliding velocity: vg = 5 ... 100 m/s (16 ... 328 ft/s)
Oil viscosity: ISO VG32 + 46
Materials
Seal face: Silicon carbide
Seat: Silicon carbide
Secondary seals: FKM
Metal parts: 1.4006 or other stainless steels
Seat: Silicon carbide
Secondary seals: FKM
Metal parts: 1.4006 or other stainless steels
Standards and approvals
- NACE
- TA-Luft-konform
Recommended applications
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Refrigerants
- Screw compressors
- Centrifugal compressors
- Geared compressors
Notes
The WRS is an oil-lubricated seal that safely seals
various types of compressors and organic media. With its
rugged design, low life-cycle costs and long service life, the
WRS can be found in thousands of applications. The design
is optimized by using the finite element method and
computational fluid dynamics.
Dimensions on request.
Dimensions on request.
Product variants

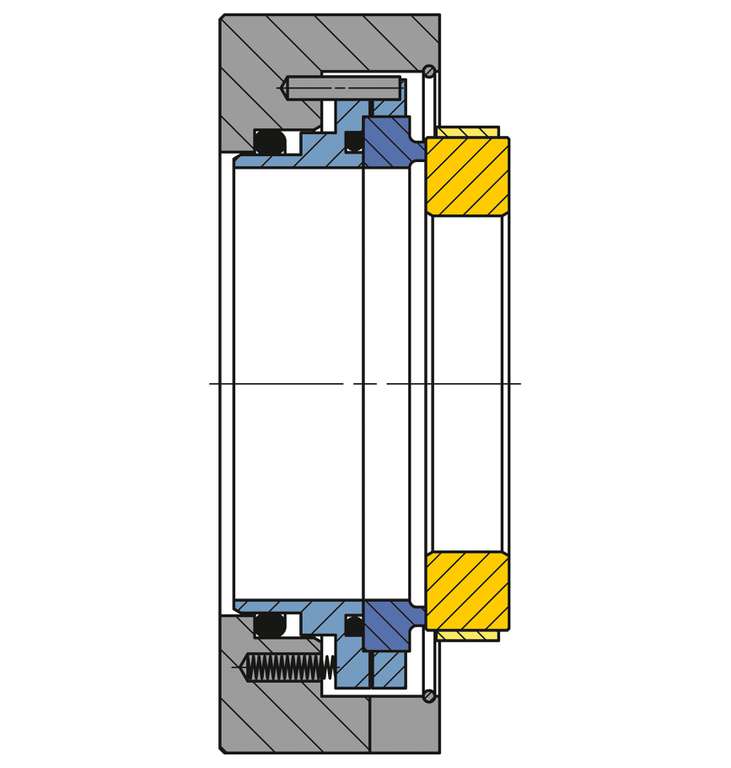

WRS single seal

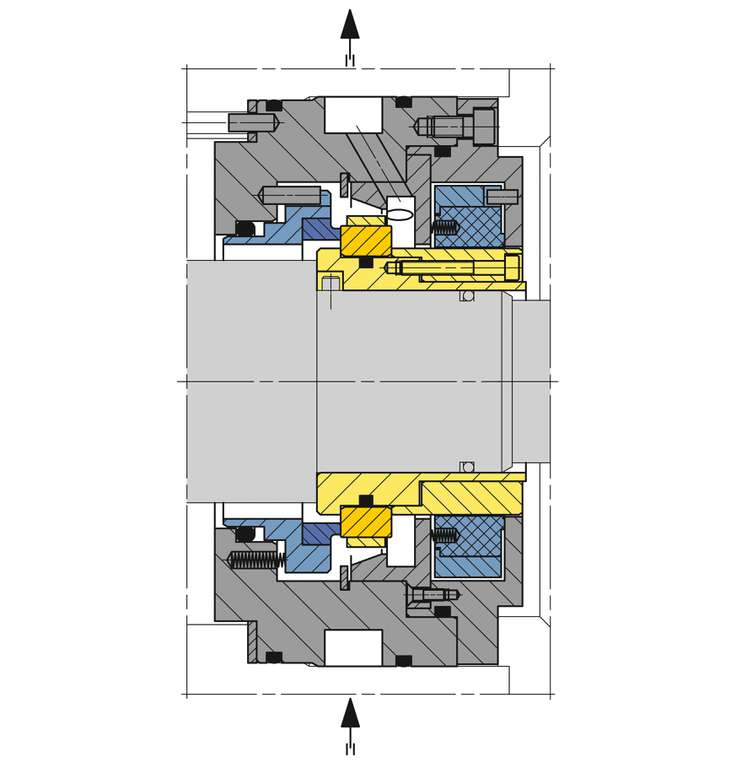

WRS single seal with face bushing
Similar products
B800
- Oil-lubricated
- Double seal
- Balanced
- Bi-directional
- Stationary bellows (process side)
- Multiple springs (bearing side)
- Shrink-fit seat
- Double-pressure balanced
Contact
Inquire about individual solutions
We develop and produce customer-specific special and individual solutions for every application.
