Burajet SCH 8032/SCH

Request product

Burajet SCH 8032/SCH

Burajet SCH 8032/SCH
Request product

Burajet SCH 8032/SCH

Features

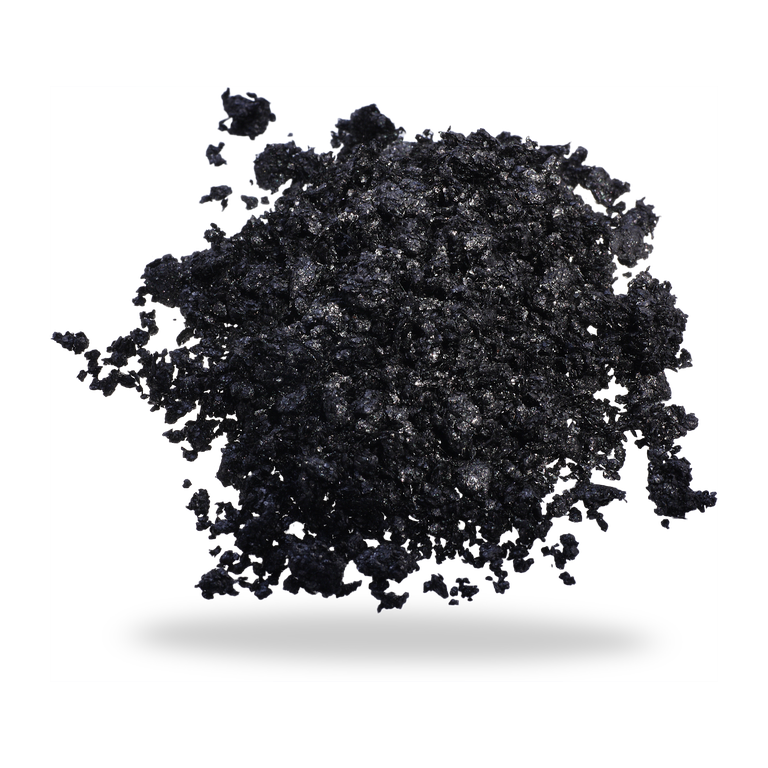

Burajet SCH 8032/SCH is a fiber injectable compound packing made from fiber-stabilized graphite. It is manufactured from natural graphite combined with binders which are applied to the graphite fibers using a special process. For some applications, it may be necessary to retain it between braided compression packings (e.g. Isartherm-Flex 6050 or Isartherm K-Flex 6051).

Advantages

  • Specially developed for high temperatures
  • Good heat conductivity
  • Can cover over minor shaft defects

Operating range

Valves
Pressure: p = 100 bar
Sliding velocity: vg = 2 m/s
Temperature
  • Continuous operation:
    t = -30 °C ... +450 °C
Chemical resistance: pH = 0 ... 14
Resistant to waste and exhaust gases

Forms of supply

  • 1kg container of loosely packed fiber injectable compound
  • Also available with Isartherm Flex 6051 or Isartherm Flex 6050 braided end rings

Similar products

Burajet SCW 8032/SCW

Burajet SCW 8032/SCW

Burajet SCW 8032/SCW is a fiber injectable packing based on PTFE fiber with a heavy-duty lubricant. For some applications, it may be necessary to retain it between braided compression packings (e.g. Burasoft L 6225/L or Buramex 6335). To reduce product contamination and to compensate better for radial shaft movements, a special retention between HPU (hydrolysis-resistant polyurethane) or FKM (fluorocarbon rubber) lipped rings is used.

Read more

Burajet Chamber rings 8032/AU

Burajet Chamber rings 8032/AU

Burajet retainer rings are molded HPU (hydrolysis-resistant polyurethane) or FKM (fluorocarbon rubber) rings with sealing lip which are produced to match the shaft and gland housing. They efficiently retain the Burajet injectable compound packings, thus reducing product contamination. The compensation for radial shaft movements is also better than with braided packings.

Read more

Burajet SCA 8032/SCA

Burajet SCA 8032/SCA

Burajet SCA 8032/SCA is a fiber injectable compound based on aramid/PTFE with a special lubricant. For some applications, it may be necessary to retain it between braided compression packings (e.g. Buramex SF 6335 or Araflon 6426).

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
