Gasket nibbler 9615

Gasket nibbler 9615
Request product

Gasket nibbler 9615

Features

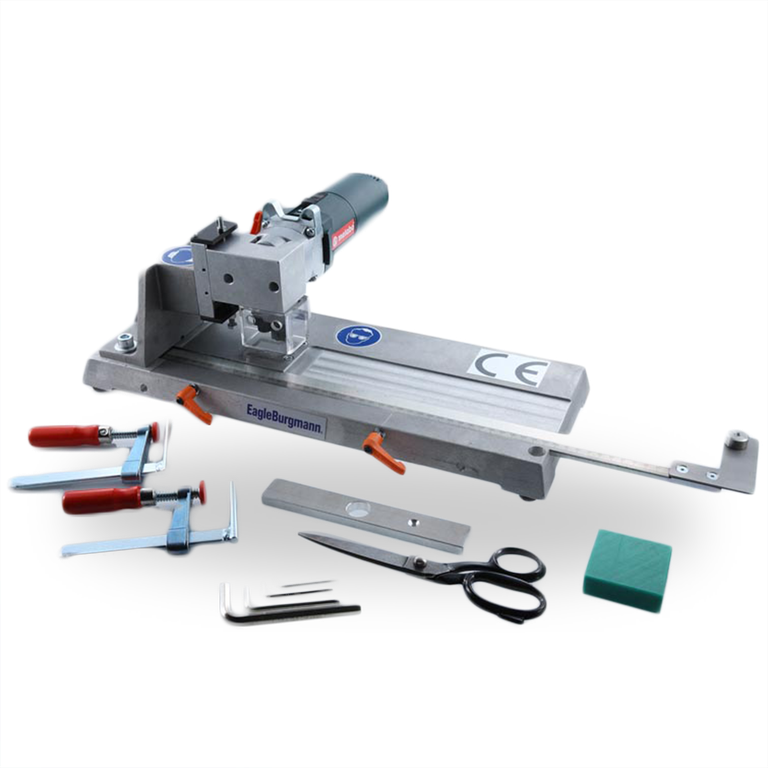

The gasket nibbler 9615 is an electrically-driven gasket cutter with accessories. It is used to produce medium-sized batches of sealing rings and gaskets of any other shape.

Advantages

  • Ideal for rapid repairs and on-site work
  • Can be used to cut small quantities of tanged inserts
  • Can be used to make many different shapes, by tracing for example

Operating range

  • Voltage: 230 V
  • Radius: at least 100 mm
  • Gasket diameter:
    from approx. 60 mm to approx. 1,500 mm
  • Gasket thickness: max. 3 mm
  • Thickness of the metal insert:
    0.2 mm
  • Minimum edge width depends on the material

Variants

Set:
Gasket nibbler 9615
Spare parts:
Spare upper blade 9615/OM
Spare lower blade 9615/UM
Hole punch, diameter 20 mm 9615/LO
Clamping lever, M6 thread 9615/KL
Finger guard (perspex) 9615/FI
Tilt/clamping lever, M4 thread 9615/KKH
Metabo type 030/PKU6872 curve shears 9615/KS
Screw for upper blade M4 x 16 (engineered) 9615/OMS
Screw for lower blade M3 x 12 (countersunk Allen type) 9615/UMS
Scale/ruler without bracket and mandrel 9615/S
Spare lower blade 9615/UM
Hole punch, diameter 20 mm 9615/LO
Clamping lever, M6 thread 9615/KL
Finger guard (perspex) 9615/FI
Tilt/clamping lever, M4 thread 9615/KKH
Metabo type 030/PKU6872 curve shears 9615/KS
Screw for upper blade M4 x 16 (engineered) 9615/OMS
Screw for lower blade M3 x 12 (countersunk Allen type) 9615/UMS
Scale/ruler without bracket and mandrel 9615/S
