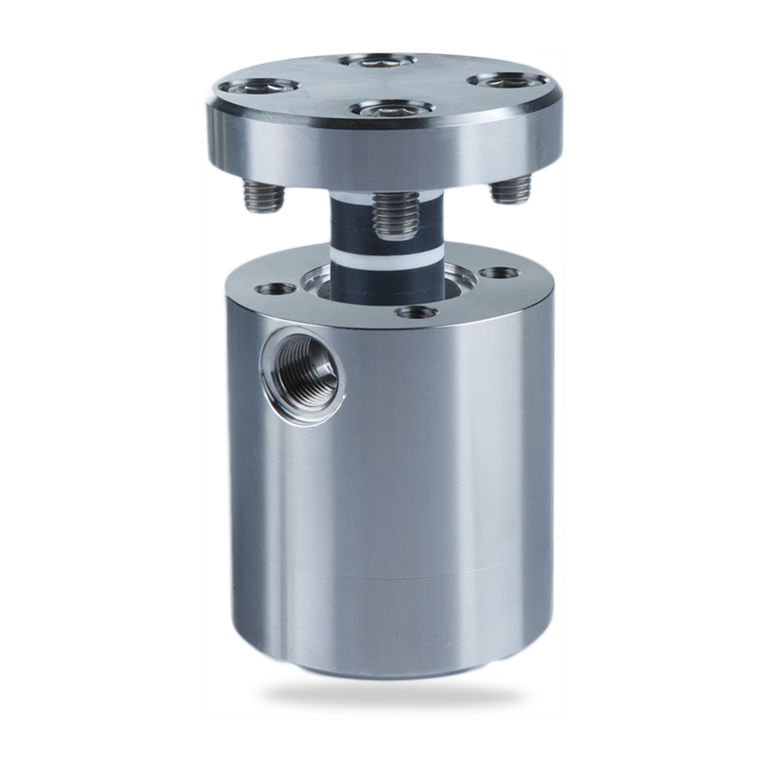

MAA Magnetic separator

MAA Magnetic separator

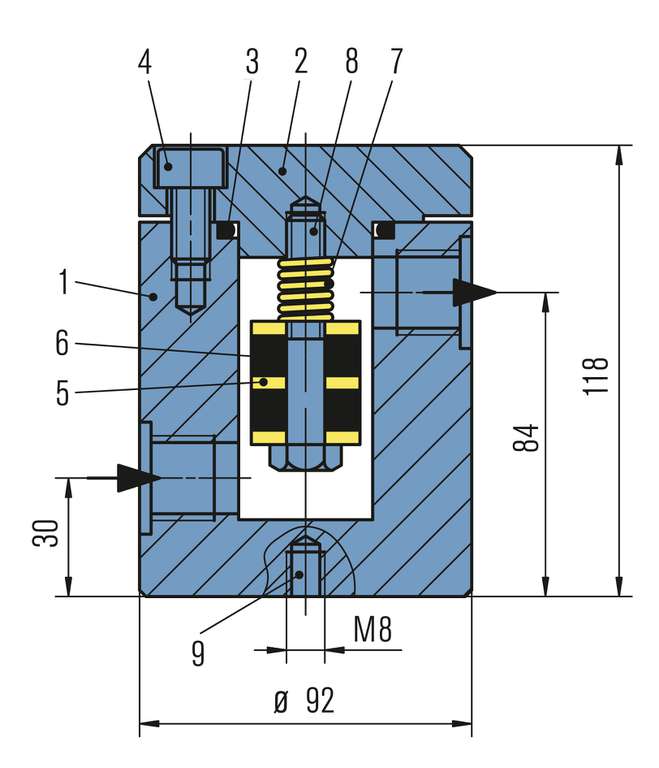

Item Description
1, 2 Casing and cover: 1.4571
3 O-Ring: E
4, 8 Screws: A4 – 70 stainless steel
5 Washers: T2
6 Ring magnets:
corrosion-resistant
7 Spring: 1.4301
9 Fixing hole

MAA Magnetic separator

Features

Magnetic separators of the MAA range consist of a pressure casing with integrated magnetic rod. Magnetic separators are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic impurities.

Advantages

  • For operating pressures of up to 150 bar
  • Housing can be dismantled: simple maintenance and cleaning
  • Reliable and rugged technology

Functional description

The magnetic rod is positioned in the casing in such a way that it catches magnetic particles flowing past in the medium on all sides.

Notes

Cleaning:
The magnetic rod can be removed for cleaning with the casing fitted by opening the cover (with the line depressurized!). Maintenance intervals depend on the degree of soiling. We recommend checking and if necessary cleaning the magnetic rod several hours after using for the first time and each time after flushing the pipes because experience indicates that much of the dirt is flushed out of the pipes at this time.



Product variants

Description Process
conection
Allowable pressure Allowable temperature Volume (liters) Weight (approx.) Cover, housing Spring O-Ring Gasket
MAA2120/G1/2-00 G 1/2" 120 bar
(1,740 PSI)
160 °C
(320 °F)
0.08 5.5 kg
(12.2 lb)
1.4571 1.4301 EPDM T2
MAA2120/1/2NPT-00 1/2 NPT 120 bar
(1,740 PSI)
160 °C
(320 °F)
0.08 5.6 kg
(12.3 lb)
1.4571 1.4301 EPDM T2
MAA2140/1/2NPT-00 1/2 NPT 140 bar
(2,031 PSI)
160 °C
(320 °F)
0.08 5.6 kg
(12.3 lb)
1.4571 1.4301 EPDM T2
MAA2150/1/2NPT-D0 1/2 NPT 150 bar
(2,176 PSI)
150 °C
(302 °F)
0.08 5.6 kg
(12.3 lb)
1.4571 1.4301 EPDM T2
MAA2010/FL1/2/150/A001-D1 Flange 1/2" 10 bar
(145 PSI)
100 °C
(212 °F)
0.08 7 kg
(15.4 lb)
1.4571 1.4301 EPDM FFKM

Other versions on request.
